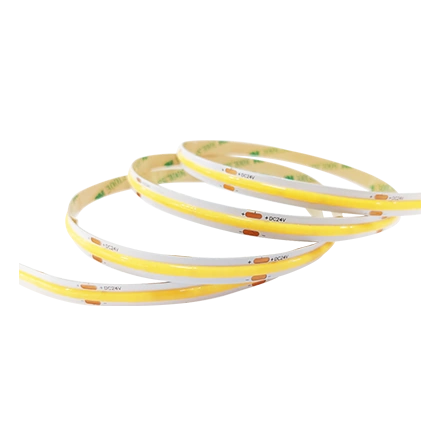

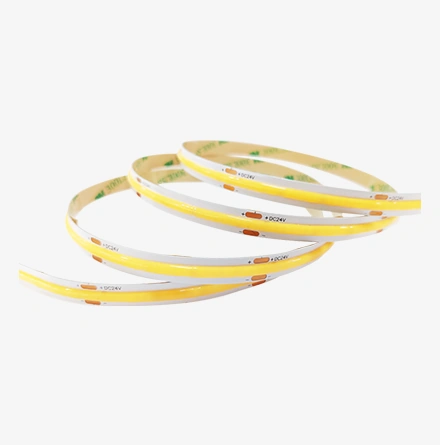

VALUE201
TECHNICAL DETAILS
– Dotless: Uniform light emission, no dark areas.
-R2R: Reel-to-reel PCB, no solder joints for whole reel.
-Double ended power input: Both ends are equipped with input wires.Friendly to use after cutting.
-Double layer FPC: Balancing the voltage dropping, heat dissipation and flexibility.
PRODUCT DESCRIPTION
| Model | Input | LED/M | M/Reel | LED type | CRI | IP rating | Power | Lumen/M | CCT |
|---|---|---|---|---|---|---|---|---|---|
| VALUE201 | DC24V | 480pcs/M | 5M/Reel | COB | >90 | IP20/IP65 | 10W/M | 900 lm@3000K | 2700K/3000K/4000K/6500K |
COMPATIBILITY:
ON/OFFTriac0/1-10VDALIPWM

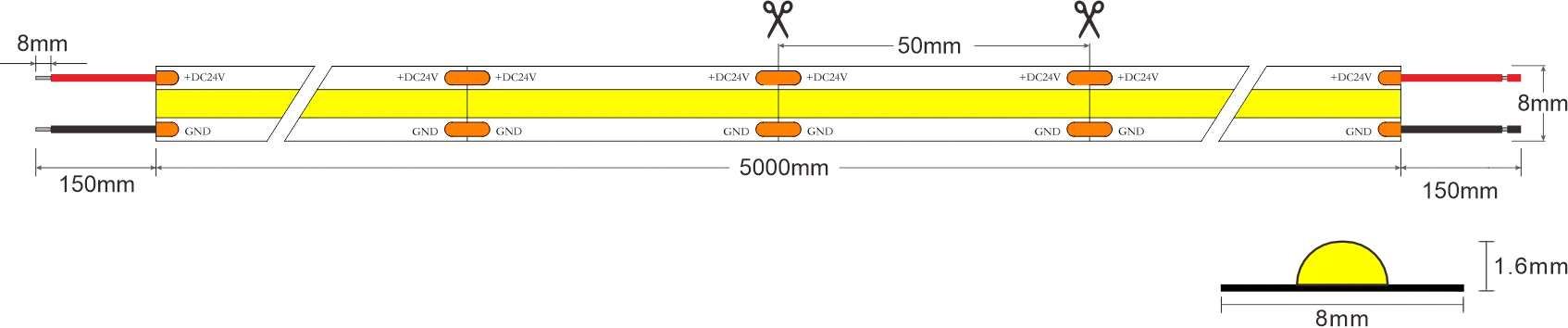

DIMENSIONS:
