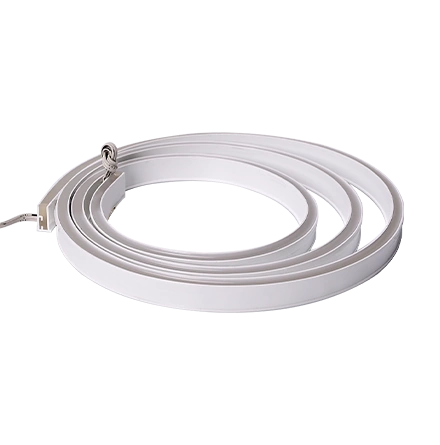

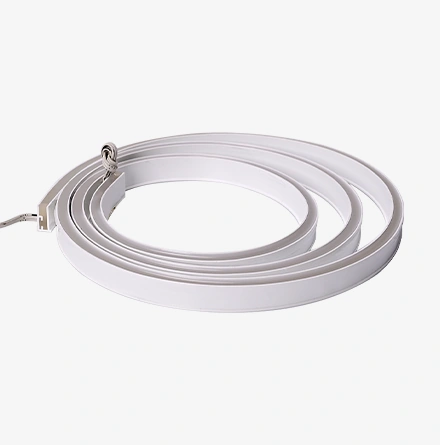

ROCK1323
TECHNICAL DETAILS
-IP68: One-piece molding technology is used to prevent water vapor intrusion.
-IK10: Test according to IEC 62262:2002,high impact protection rating Ik10(20J), effectively reducing maintenance costs and workload.
-Modified PVC: With the highest protection level, anti-UV,anti-corrosion, not easy to yellow, no cracking. Good weather resistance.
-Dotless: Uniform light emission, no dark areas.
PRODUCT DESCRIPTION
| Model | Input | LED/M | M/Reel | LED type | CRI | IP rating | Pixel/m | Power | Lumen/M | CCT |
|---|---|---|---|---|---|---|---|---|---|---|
| ROCK1323 | DC24V | 96pcs/M(Single) 60pcs/M(RGB) |
5M/Reel | SMD | >80 | IP68 | 8Pixel/m (Single SPI) 10Pixel/m (RGB SPI) |
10W (Single on-off) 7.5W (Single SPI) 14W (RGB SPI) |
195 lm(10W)/M@3000K | 2200K/3000K/4000K/6500K R/G/B R-SPI/G-SPI/B-SPI 2200K-SPI/3000K-SPI 4000K-SPI/6500K-SPI SPI |
COMPATIBILITY:
ON/OFFTriac0/1-10VDALIPWM
DIMENSIONS:
