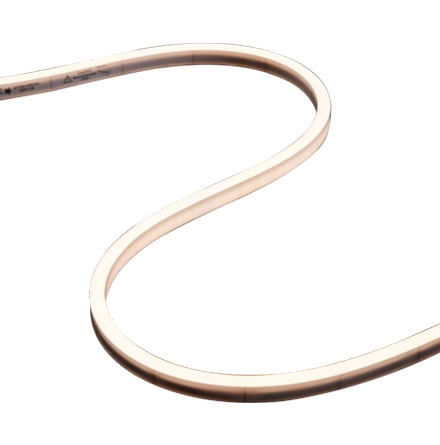

P1220-S
TECHNICAL DETAILS
-IK10: Test according to IEC 62262:2002, high impact protection rating IK10(20J), effectively reducing maintenance costs and workload.
-PU: Hard PU diffusor, UV resistant and solvents resistant, no yellowing and no crack.
-IP68: Full PU encapsulation technology, LED&PCB fully sealed, no any water immersion risk.
-Seamless connection: Embedded end cap design, end to end connection without any dotand darkness.
PRODUCT DESCRIPTION
| Model | Input | LED/M | M/Reel | LED type | CRI | IP rating | Power | Lumen/M | BA | Pixel/m | CCT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NEON/P1220-S | DC24V | 140pcs/M | 5M/Reel | SMD | >80 | IP68 | 10W/M | 680 lm/M@3000K | 120° | 10 pixel/m(RGB/RGBW)(DMX) 20 pixel/m(single White)(DMX) |
2700K/3000K/3500K/4000K/5000K/6000K R/G/B/Y/RGB/RGBW/DMX |
COMPATIBILITY:
ON/OFF0/1-10VDALIDMX512 Full colorDMX512 Pixel color
DIMENSIONS:
