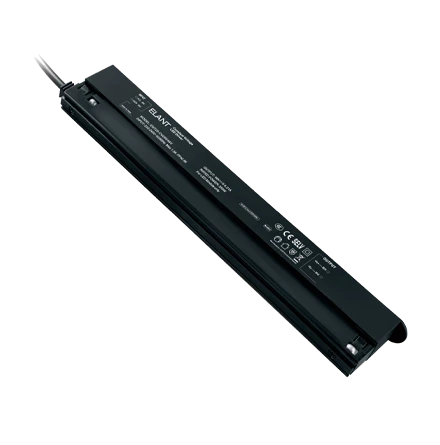

EMT20-CV250-48V

PRODUCT DETAILS
– IP20
– Constant voltage design: 48V
– Output Type: Constant Voltage
– Dimming Type: N/A
– Output Features: Isolation
– Insulation Class: Class II
– Built in active PFC function, PF≥0.95
– 5 years warranty

PRODUCT DESCRIPTION



1. Parameter Table
MODEL Rated Input Voltage Input Power Input Current PF Output Power Range Output Voltage Output Current Efficiency
EMT20-CV250/48V 220-240VAC ≤275W ≤1.5A ≥0.95 0-250W 48V 0-5.21A ≥90%

2. Specification Table
Category Parameter Value/Range
INPUT Rated Input Voltage 220~240VAC
Range of Input Voltage 176-264VAC
Frequency Range 50/60HZ
Input Current ≤1.5A
Input Power <275W
Power Factor PF≥0.95/230VAC
THD ≤10%(230VAC,full load)
No load power consumption <0.5W
Inrush current ≤80A/200us(230VAC,full load)
Connected quantity of 16A Breaker 7pcs/type B;13pcs/type C@230Vac
OUTPUT Output Voltage 48VDC+/-3%
No Load Voltage 49.5VDC Max.
Output PW/M Frequency N/A
Output Current 0-5.21A
Max.Output Power 250W
Efficiency ≥90%(48V),≥88%(24V)(230VAC,full load)
Voltage Ripple <5%(Vmax-Vmin)/(Vmax+Vmin)
Start up Time ≤0.5S(230VAC,full load)
Control Method PWM dimming N/A
1-10V(0-10V) dimming N/A
Resistance dimming N/A
Dimming range N/A
Protection Short Circuit Protection Auto Recovery
Overload Protection Auto Recovery
No-load Protection Auto Recovery
Insulation voltage I/P to O/P, 3.0KVac/5mA/1min
Insulation resistance ≥100M ohm@ 500VDC
Leakage current I/P to O/P<250μA@230AC input
Environment Working Temp. -25°C~+50°C
Ts/Storage Temperature -40°C~+85°C
Tc/Enclosure Temperature 90℃
Humidity 10%~90%RH
Atmosphere 86-108KPa
Construction Connection Method Independent
PRI Wire preparation 0.75-1.5
SEC Wire preparation N/A

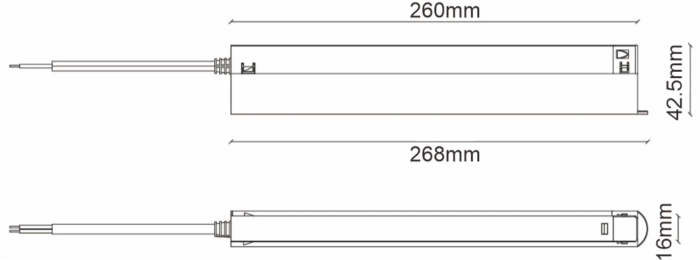

Dimension 268 * 22 * 44mm(L*W*H)
Standards Certification
Safety Standards EN61347-1:2015, EN61347-2-13:2014/A1:2017, EN62493:2015, AS61347.2.13:2018, AS/NZS61347.1:2016 Inc A1
EMC Standards EN55015:2013/A1:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN61547:2009
Performance EN62384
Surge L-N& L/N-PE:2KV
Others RoHS 2011/65/EU
Life Time 50000h@230VAC Full load
Warranty 5years,F.R.<10000ppm
Packing 0.334kg;30pcs/11.8kg/447 * 240 * 200mm
