EFD*
TECHNICAL DETAILS
- Bridgelux LED chip: (SDCM ≤3), CRI≥90
- IK06 (EFD120)
IK07 (EFD145,EFD162)
IK09 (EFD138,EFD190) - Rated life: 50,000 hours
- Operation temp: -25°C ~ +55°C
- Material: Aluminum body & Stainless steel
316L U bracket - Deep anti-glare, cut-off angle 40°
- Cable: 3×0.75mm² 1M rubber cable
- AkzoNobel coating, 1000H salt spray test, suitable for coastal projects
Product Description:

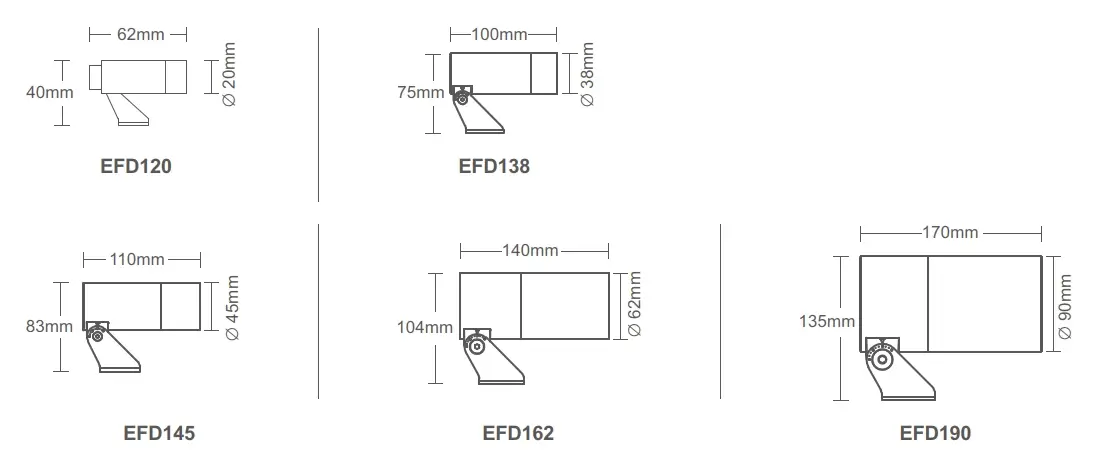

| Model | Voltage | Power | CCT | Lumens | CRI | Beam Angle |
|---|---|---|---|---|---|---|

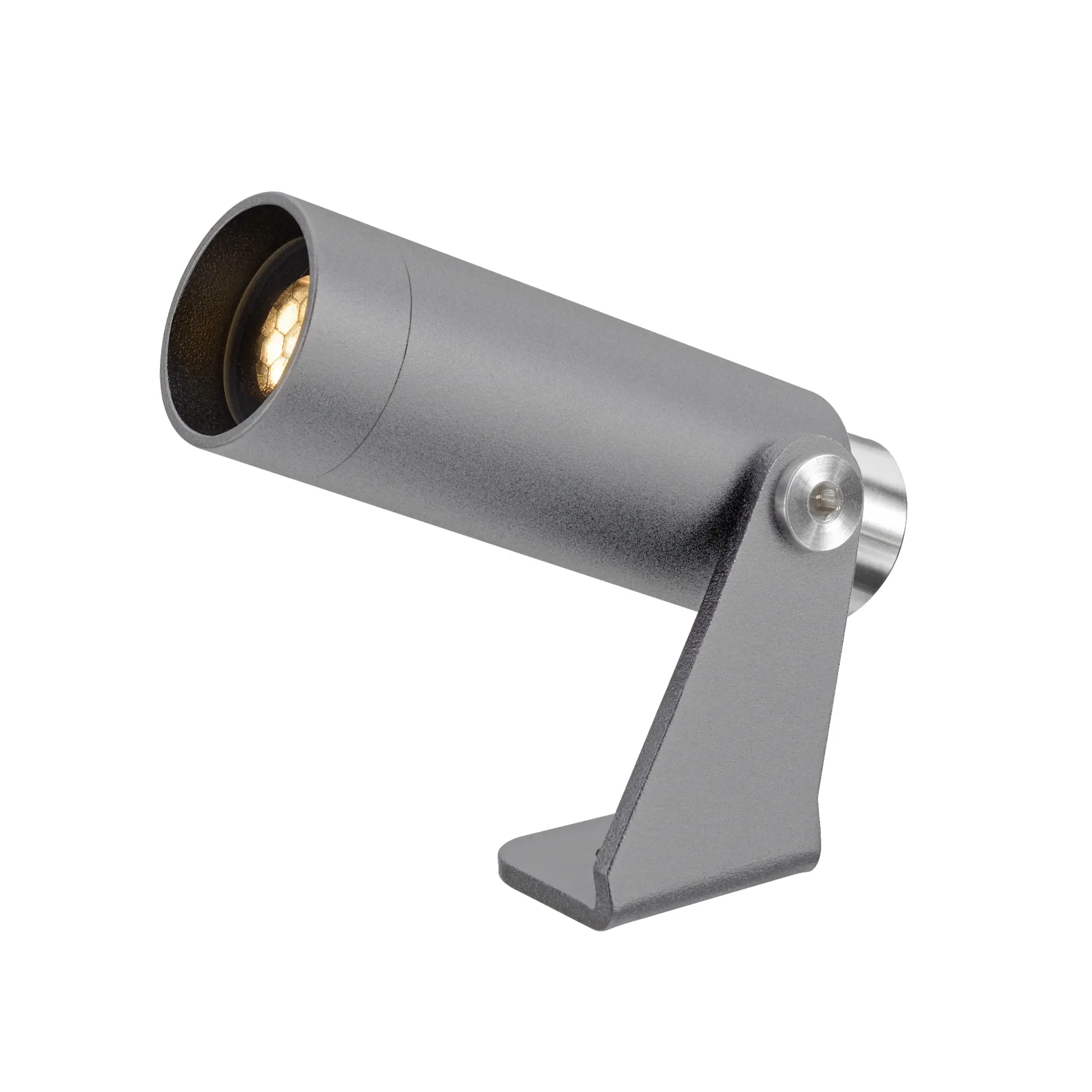

| EFD120 | DC24V/48V | 2.5W | 2700K/3000K/4000K | 80lm | ≥90 | 15°/22°/43° |

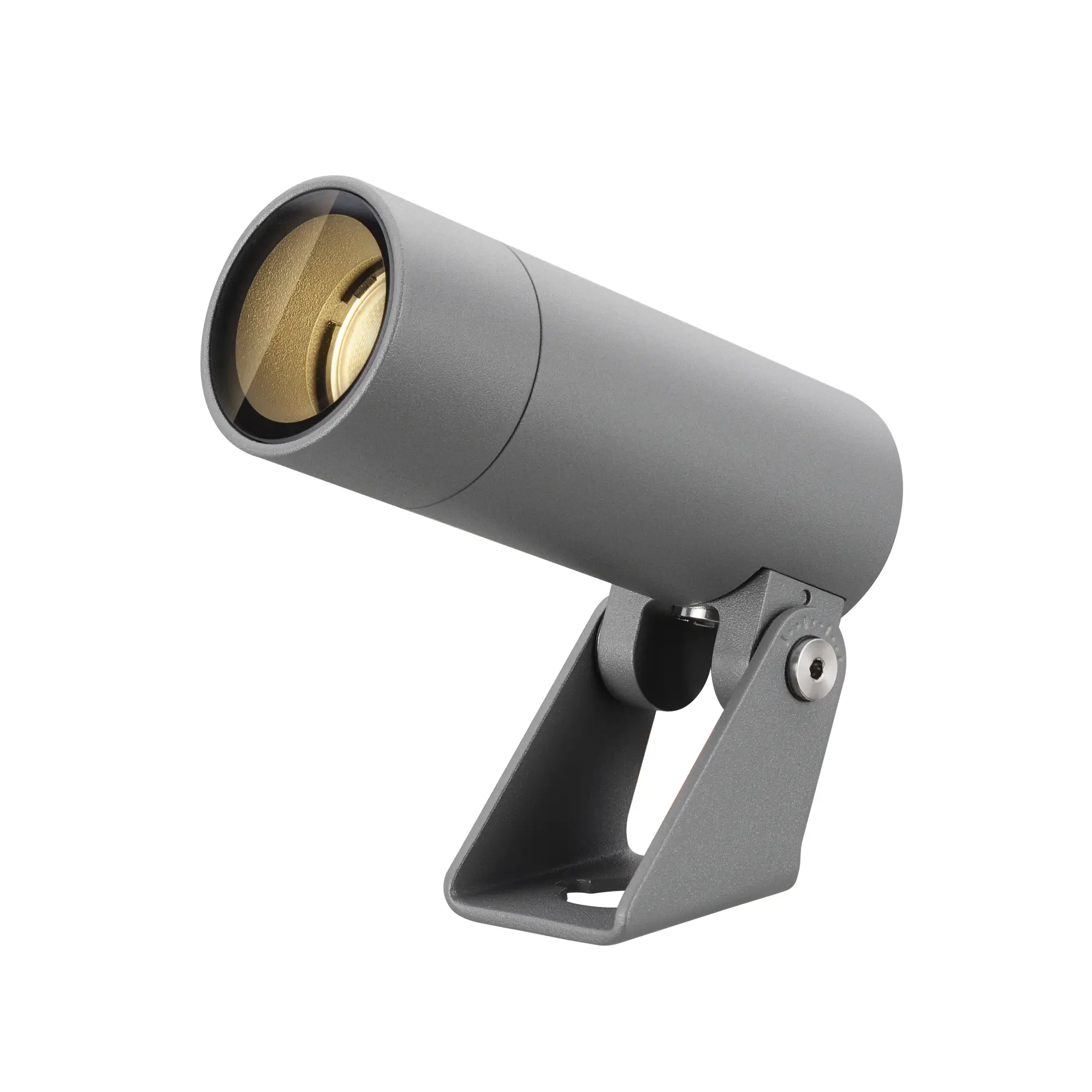

| EFD138 | AC220-240V | 5.6W | 2700K/3000K/4000K | 358lm | ≥90 | 15°/20°/32°/55° |

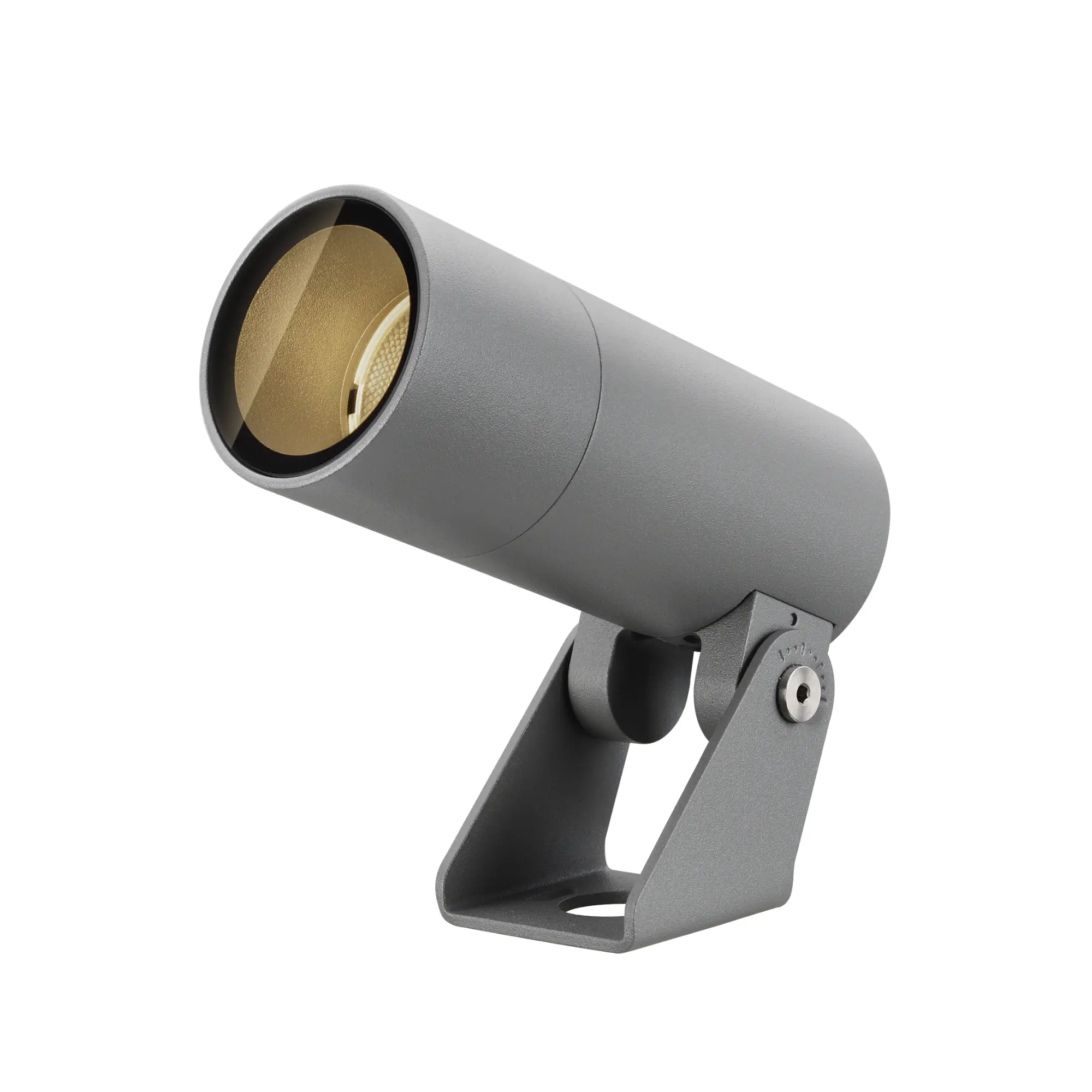

| EFD145 | AC220-240V | 9W | 2700K/3000K/4000K | 614lm | ≥90 | 15°/24°/32°/48° |

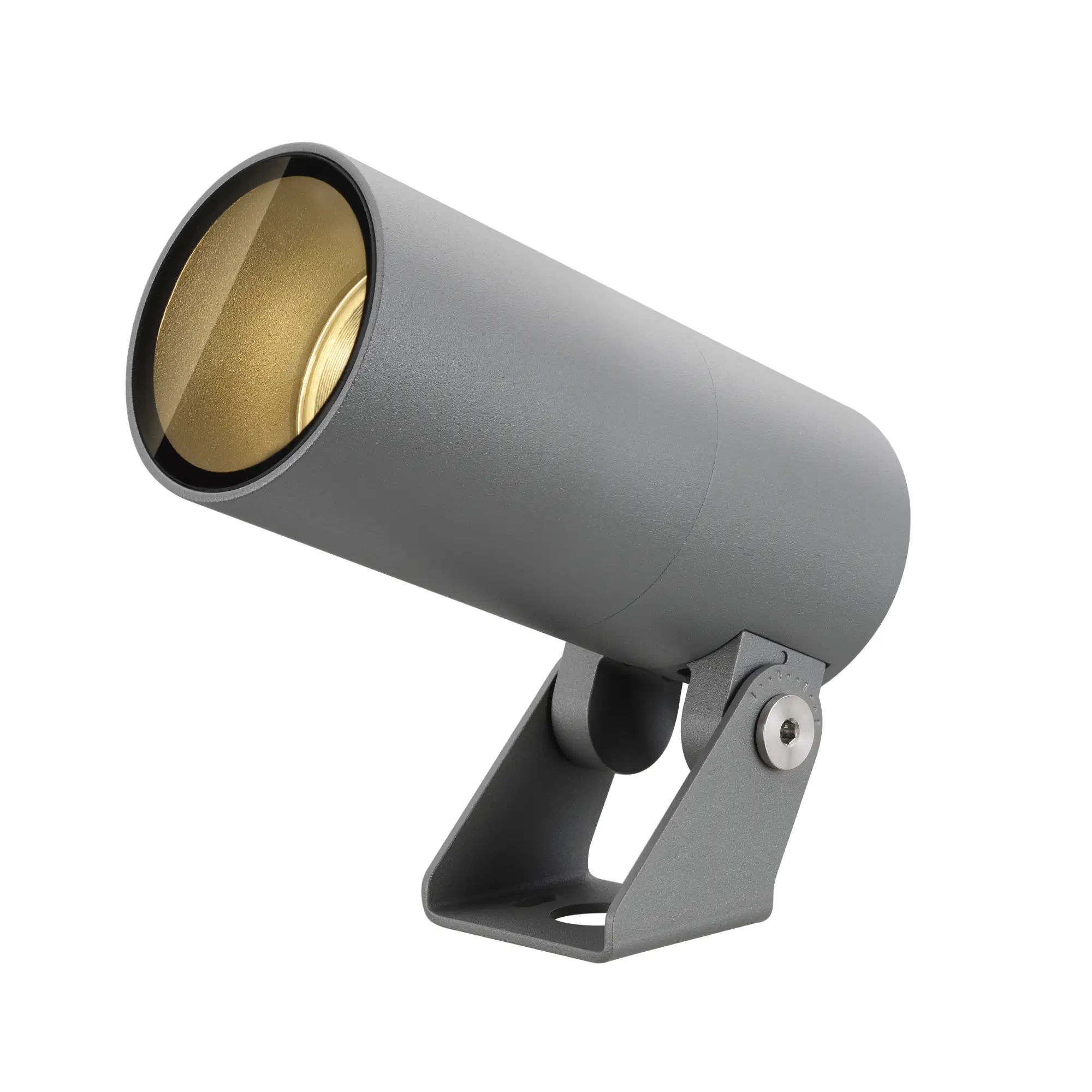

| EFD162 | AC220-240V | 15W | 2700K/3000K/4000K | 1312lm | ≥90 | 20°/24°/38°/55° |

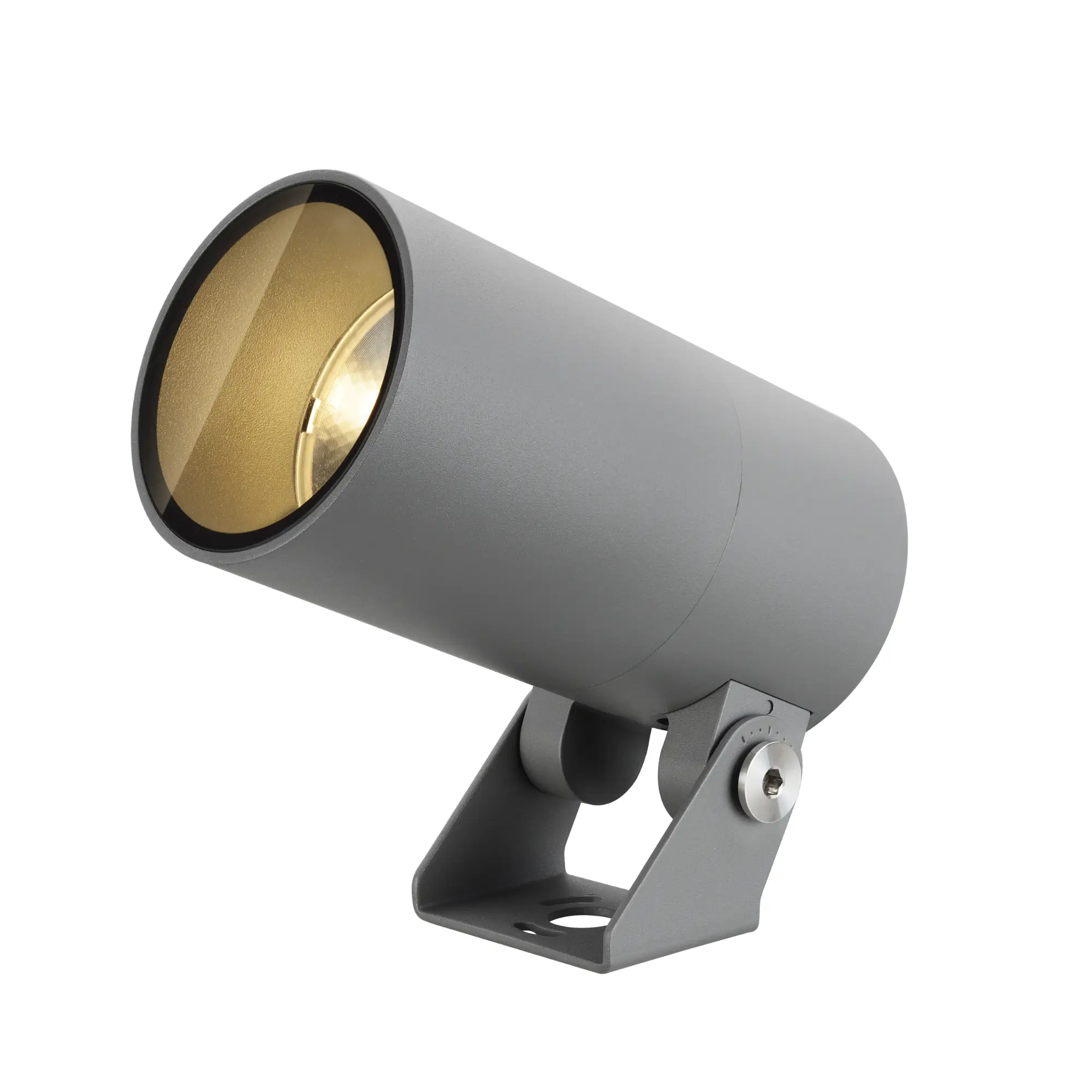

| EFD190 | AC220-240V | 25W | 2700K/3000K/4000K | 2382lm | ≥90 | 20°/24°/38°/55° |
