| MODEL |

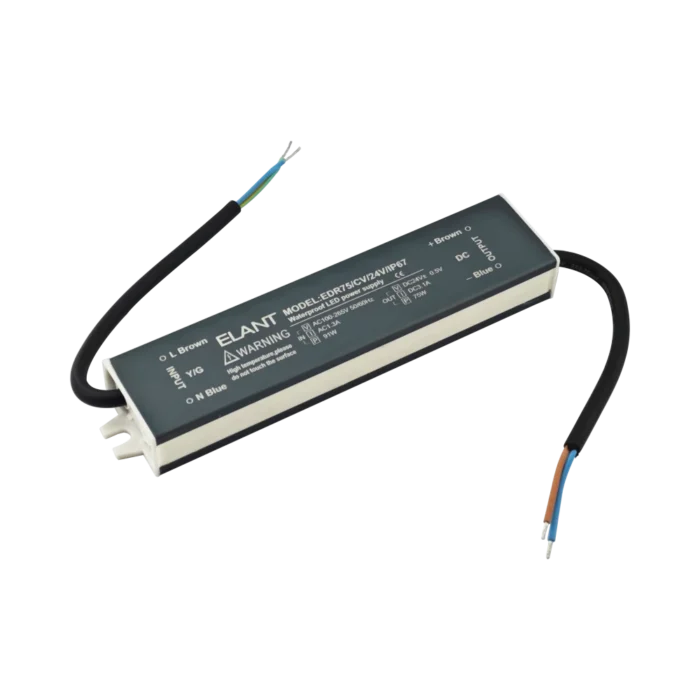

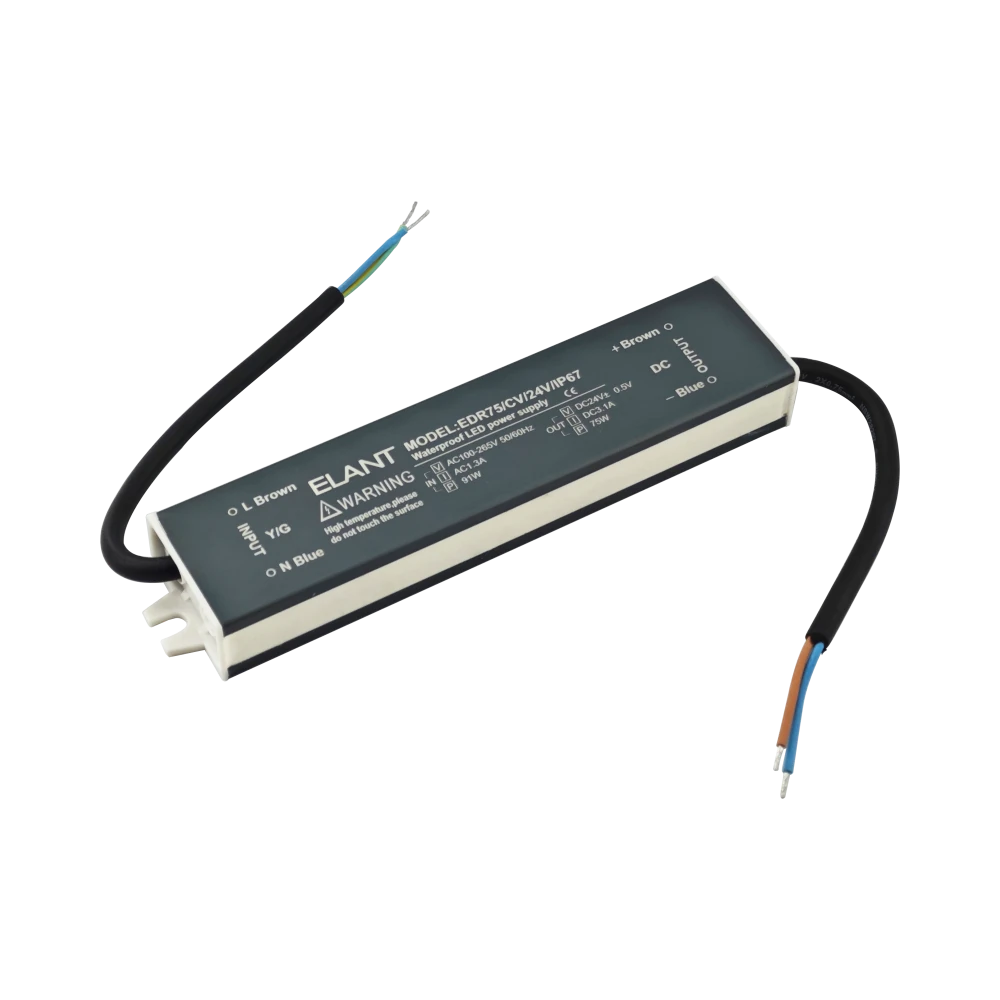

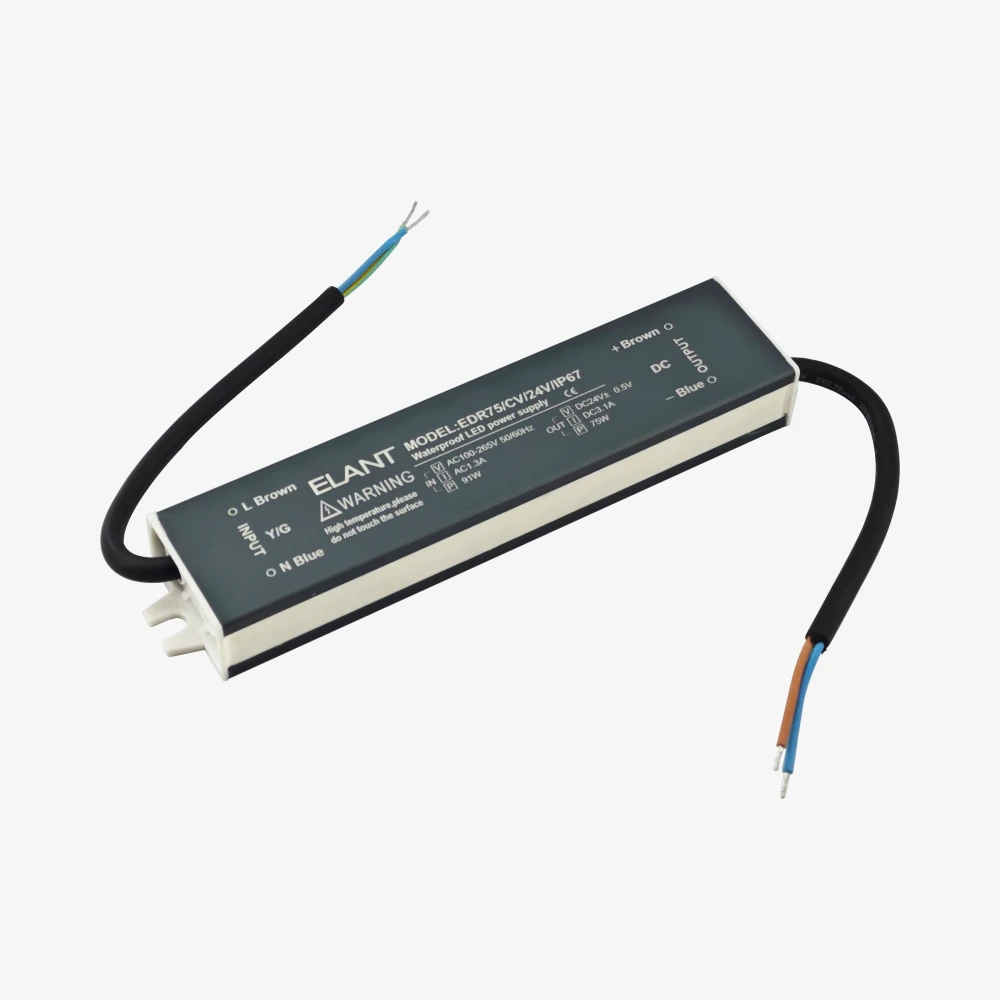

EDR75/CV/24V |
| OUTPUT |
Rated DC voltage |
24V±0.5V |
| Current range |
0-3.13A |
| Rated Power |
75W |
| Ripple & Noise |
≤240mVp-p |
| Setup, Rise time |
50ms/230VAC |
| Hold up time |
20ms/230VAC |
| INPUT |
Voltage range |
AC100-265V (AC110V, the maximum load does not exceed 60%) |
| Frequency range |
50-60HZ |
| Efficiency(Tpy.) |
≥88% |
| Power factor |
0.65(max) |
| Leakage current |
0.25mA/230VAC |
| Protection |
Over Current |
105%-130% |
| Protection type: Hiccup mode |
| Reset After Shutdown |
After the fault has been removed |
| Environment |
Working TEMP. |
-20°C-55°C |
| Storage TEMP. |
-40°C-80°C |
| Working Humidity |
0-100% |
| Vibration |
10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes |
| TEMP. coefficient |
±0.03%°C (0-50°C) |
| Safety |
Safety Standards |
Design refer to LVD EN61347-2-13:2006,EN61347-1:2008 |
| With stand Voltage |
I/P-O/P:1.5KVAC,I/P-COVER:1.5KVAC,O/P-COVER:500VDC |
| Isolation Resistance |
I/P-O/P:>100M Ohms/500VDC/25°C/70% RH |
| Others |
MTBF |
50KHours (25°C) |
| Dimension |

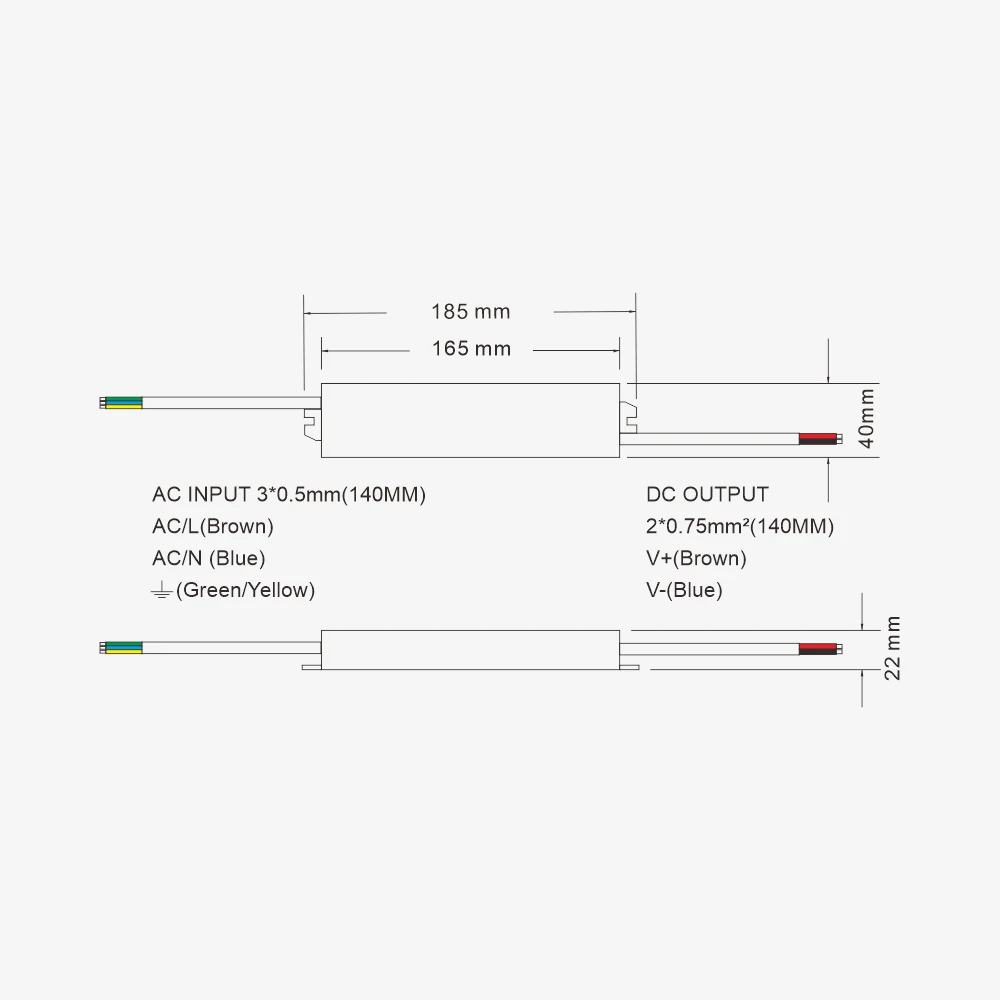

185×40×22mm(L×W×H)(Without line) |
| Weight |
280±5g |
| Packaging |
355×270×235mm 65PCS |
