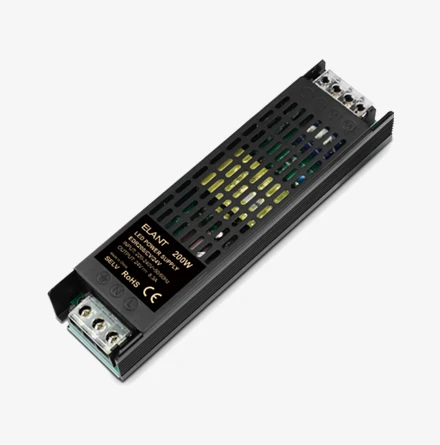

| MODEL |
EDR200/CV/24V |
| INPUT |
Efficiency |
≥90%@230VAC |
| Frequency Range (Hz) |
50/60Hz |
| Voltage |
220-240VAC |
| PF |
≥0.4@230VAC |
| Current |
2.3A max@230Vac |
| Inrush current |
Cold start 100A@230VAC 1ms |
| Standby power |
≤1W |
| No load power |
≤1W |
| Turn on delay Time |
≤0.75s, at 230Vac (When the light begins to shine) |
| OUTPUT |
Power |
200W |
| Output Voltage |
24VDC |
| Current |
0~8.3A |
| Frequency |
65K |
| Channel |
1 |
| No load output voltage |
24.5VDC max |
| Protection |
| Over load |
Reduce voltage protection to troubleshoot normal output |
| Short circuit |
Short circuit No output, troubleshooting output normal |
| Over temperature |
Reduce voltage protection to troubleshoot normal output |
| Safety&EMC |
| Surge |
L-N 1000VAC, LN-Ground cable 2000VAC |
| Safety standards |
IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 |
| Insulation Resistance |
5MΩ |
| Others |
Storage Temp., Humidity |
-40℃~85℃, 20-90%RH |
| Working temp. |
ta: -20℃~55℃ |
| Tc |
85°C@230Vac |
| IP |
IP20 |
| Packing size |
Net weight: -g±5%/Carton; Carton |

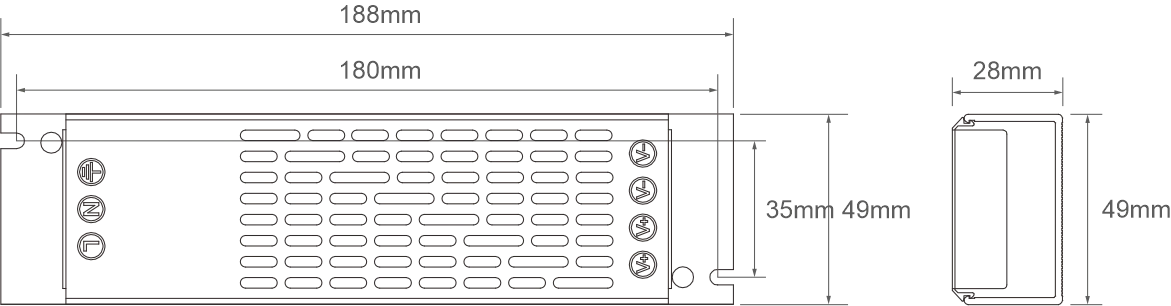

| Dimension |
188x49x28mm(LxWxH) |
